3.1 Ülesanne: Ühe nupuga ühe lambi lülitamine

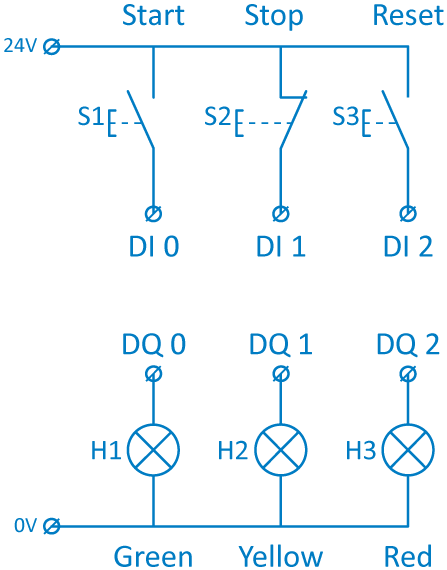

Süsteemi „Nuppud ja lambid” kirjeldus
Süsteemus on 3 nuppu (S1 - Start, S2 - Stop, S3 - Reset) ja 3 indikaatorlampi (H1 - roheline, H2 - kollane, H3 - punane).
Ülesande püstitus
Koostada programm, mis lülitaks esimesel STOP nupu vajutusel indikaatorlambi H3 sisse ja teisel vajutusel välja.
Lülitamine peab olema korratav ja nupu all hoidmisel ei tohi esineda vilkumist lampide töös.
Soovitatav lugemismaterjal
Ülesande lahendamiseks tutvuda järgmiste peatükkidega.
CoDeSys animatsioon
Alla laetav animatsioon virtuaalsele PLC-le "CODESYS Control WIN V3". See võimaldab testida PLC programmi arvutis ilma reaalse riistvarata.
3.1 Exercise: Switching one light with one button
Description of the buttons and lights
The MFS stand has three buttons (S1 – Start button, S2 – Stop button, S4 – Reset button) and 3 indicator lights (lamps) (H1 – Green light, H2 – Yellow light, H3 – Red light).
Description of the exercise
Write a program that switches on the indicator light H3 when pressing the STOP button first time. The light H3 is switched off when pressing the STOP button second time.
The switching must be repeatable. There should be no flashing of the light when holding a button.
CoDeSys animation
Animation for virtual PLC "CODESYS Control WIN V3". Download it and solve the exercise on the PC without the real equipment.
